FT-300
直接聯系
寧波瑞柯微智能科技有限公司
浙江寧波
面議
ROOKO
FT-300
3329
10-7

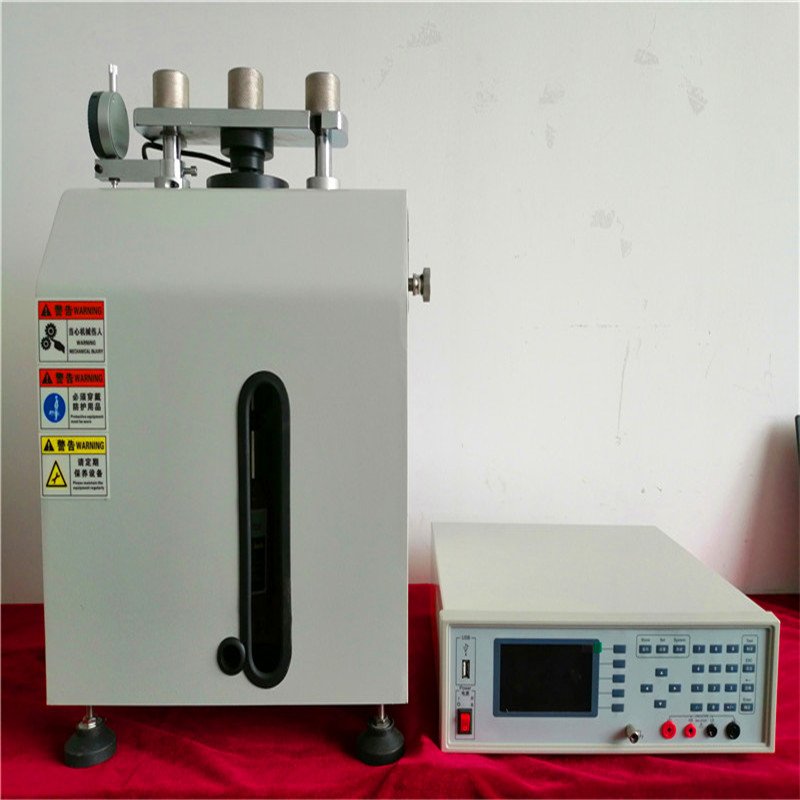

采用4.3吋液晶屏幕顯示，同時顯示電阻值、電阻率、電導率值、溫度、壓強值、單位自動換算，標配FT-01A手動粉末測量裝置.薄膜按鍵開關面板，提供中文或英文兩種語言操作界
大學 研究院 科研所
鋰電池行業
粉末電阻率測試儀滿足的標準
一． 概述Overview：
采用四端測量法適用于鋰電池材料、石墨烯、石墨類、碳素粉末、焦化、石化、粉末冶金、高等院校、科研部門，是檢驗和分析導電粉末樣品質量的一種工具。采用4.3吋液晶屏幕顯示，同時顯示電阻值、電阻率、電導率值、溫度、壓強值、單位自動換算，標配FT-01A手動粉末測量裝置.薄膜按鍵開關面板，提供中文或英文兩種語言操作界
adopts the method of four terminal is suitable for use in carbon powder plant, coking plant, petrochemical plant, powder metallurgy factory, institutions of higher learning, scientific research department, It is an important tool for testing and analyzing the quality of powder samples. This instrument adopts the 4.3 -inch LCD screen display, also showed resistance, resistivity, conductivity value, temperature, pressure, automatic conversion unit, Configure manual powder measuring device.
粉末電阻率測試儀滿足的標準
二．參照標準standard：
YST 587.6-2006 炭陽極用煅后石油焦檢測方法第6部分 粉末電阻率的測定；標配手動粉末測試裝置,測試粉末時可以通過裝置獲得粉末壓實后高度、直徑、壓強等數據，自動計算出所需數據.能方便解決粉末及顆粒物料電阻、電阻率及電導率測量需求..
Meet YST 587.6 2006 carbon anode with the calcined petroleum coke part 6 powder resistivity test method; Powder resistivity tester configuration manual powder test device, test powder can be gained through the device of powder compaction after data such as height, diameter, pressure, automatically calculate the required data. To solve the powder and granular materials resistance, electrical resistivity and conductivity measurement requirements, economical and practical,
粉末電阻率測試儀滿足的標準
三．型號及指標Models and indicators：
規格型號 model | FT-300I |
1.電阻resistance | 10-7～2×107Ω |
2.電阻率范圍Resistivity | 10-7～2×107Ω-cm |
3.電導率Conductivity | 5×10-7～107s/cm |
4.測試電流范圍 current | 1μA，10μA，100μA，1mA，10mA，1000mA |
5.測量電壓量程Voltage | 測量電壓量程 voltage：2mV 20mV 200mV 2V 測量精度Accuracy±（0.1%讀數） 分辨率 Resolution： 0.1uV 1uV 10uV 100uV |
6.電流精度Current | ±0.1%Accuracy |
7.電阻精度Resistance Accuracy | ≤0.3%標準電阻resistance |
8.顯示讀數display | 液晶顯示：電阻值、電阻率、電導率值、溫度、壓強值、單位自動換算、橫截面、高度，上下限警報 LCD: resistance, resistivity, conductivity, temperature, pressure value, the unit automatically conversion, cross-section,， and upper limit alarm |
9.測試方式Test mode | 四端測量法Four-terminal measurement method |
10.傳感器壓力Pressure Sensors | 200kg；(其他規格可以定制) (Other specifications can be customized) |
11.粉末測量裝置 Powder measuring device | 模具Mold：內徑inner diameter 10mm； 20mm（選購）, height: 25mm, 加壓方式：手動液壓加壓測量 pressure: manual hydraulic pressure / automatic compression mode (purchase). |
12.工作電源power supply | 輸入: AC 220V±10% ,50Hz 功 耗Power consumption：<30W |
13.外形尺寸/dimensions | 主機Mainframe：約L330mm*D350mm*H120mm ;手動裝置about：約H450mm*L200mm*D120mm |
14.凈重量/Net Weight | 約35kg About 35kg |
15. 標配外選購Others buy | a.標準校準電阻1-5個；b.PC軟件一套；c.電腦和打印機依據客戶要求配置；d.計量證書1份 ，e. 高度校準塞規1個 a. Standard calibration resistor 1-5. b.PC software 1 set c. computers and printers based on customer configuration requirements. d. Measurement certificate 1. e. Height calibrated plug gauge 1 pcs |
