FT-104BA
直接聯系
寧波瑞柯微智能科技有限公司
浙江寧波

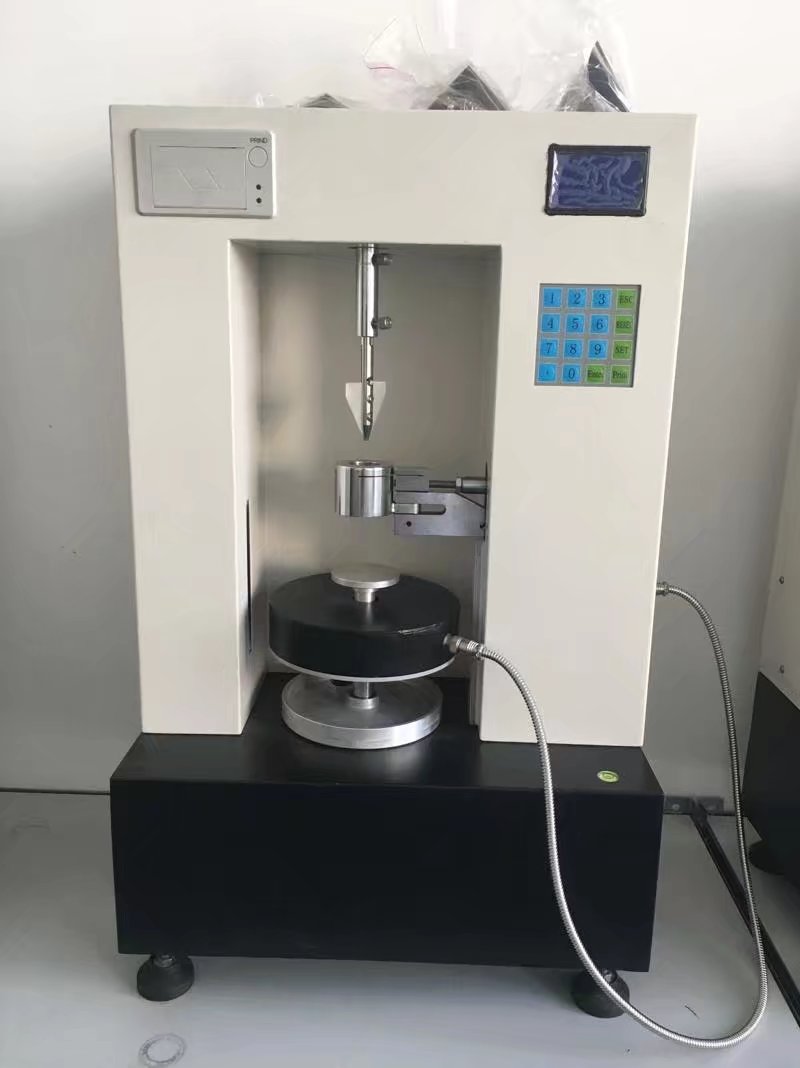

FT-104BA粉體特性測試儀
powder characteristics tester series
1. 功能描述：Function description:
提供中文或英文語言版本選擇，，自動測量控制系統，分析粉末和顆粒物料，采用光電測量系統自動測量數據，數據由集成電路系統處理并分析評定物料的流動性狀態，反映粉體和顆粒的流動能力和密度數據為料倉設計，破拱方式和物料制作工藝提供數據依據，
配備打印機系統自動打印所需數據，自動攪拌器，液晶顯示，自動出口閥門控制.數字面板操作.選購PC軟件能獲得流速及休止角變化曲線圖譜，數據分析，數據管理，報表等.
Independent research and development, to provide Chinese or English language version of the choice, adopt intelligent operation mode, automatic measurement control system, the analysis of the powder and granular materials
Adopts photoelectric measuring system Automatic measure, all data are processed by high precision chip and integrated circuit system and automatic analysis and evaluation the liquidity status of the material,
二、參照標準：usage criteria
GB11986-89 、ISO4324-1977；中國藥典、USP（美國藥典）、BP （英國藥典）、EP（歐洲藥典）的規范要求；參照標準：DIN ISO 4324 – December 1983；美國ATSM6393-08;歐洲藥典EP7.0中的07/2010:20934,美國藥典616
GB11986-89 、ISO4324-1977;Meet the requirements of the Chinese pharmacopoeia, USP(united states pharmacopeia),, BP( British Pharmacopoeia), EP (European pharmacopoeia); Reference standard: DIN ISO 4324-december 1983; ATSM6393-08 in the United States;07/2010 in EP7.0 of European pharmacopoeia: 20934, American pharmacopoeia 616
三、適用范圍：scope of application
用于制藥，化工，農業、礦業、冶金、顏料、食品、陶瓷、生物提取，科研、質檢機構，大中專院校對粉體和顆粒的物性分析，研發，品質管控，及在料倉設計方面的應用.
Widely used in pharmaceutical, chemical, Agriculture, mining, metallurgy, pigment, food, ceramics biological extraction, scientific research, quality inspection institutions, colleges physical property analysis of the powder and granular, new product research and development, quality control, and powder equipment enterprises in the application of silo design.
四、各型號功能及參數明細Technical Parameters
功能描述/型號 | FT-104BA |
1．漏斗Funnel： | 由圓柱形量筒配置多個可轉換漏斗組成，漏斗材質為不銹鋼材料制成. |
2. 可轉換漏斗口徑Convertible funnel diameter mm： | 選購：2.5；4.0；5.0；6.0；7.0；8.0；9.0；10；14；15；16；17；18；25 |
標配standard 10mm漏斗1個Funnel 1 | |
3.時間范圍Time： | 0-9999.9S設定set，精度為accuracy 0.1s |
4稱量Weighing： | 0-2000.0g；精度precision 0. 1g
|
5.漏斗容積FunnelVolume： | 200ml |
6.接收容器receiving container | 25ml、100ml、200ml、250ml、500ml（根據用戶需求選配規格，標準配置為1個）standard configuration is 1pcs |
7.松裝密度Bulk density | 0-999.999g/ml |
8.休止角Angle of repose | 0-90度；0.1度degrees |
9.休止角圓盤Angle of repose Disc | 直徑Diameter 100mm |
10. 溫濕度范圍emperature and humidity | 18-40℃ 相對濕度在relative humidity 35-80% |
11. 質量流速Mass flow rate | 0-999.99g/s |
12.體積流速Volume flow rate | 0-999.99g/ml |
13. 打印機printer | 自動打印出測試數據及流動指數 printer is automatically print test data and flow index. |
14. 攪拌裝置Mixing device | 自動攪拌下料功能. Equipped with automatic mixing feeding function |
15.電源power supply | 220V±10% |
16. 選購Choose | 軟件1套Choose to buy a set of PC software |
