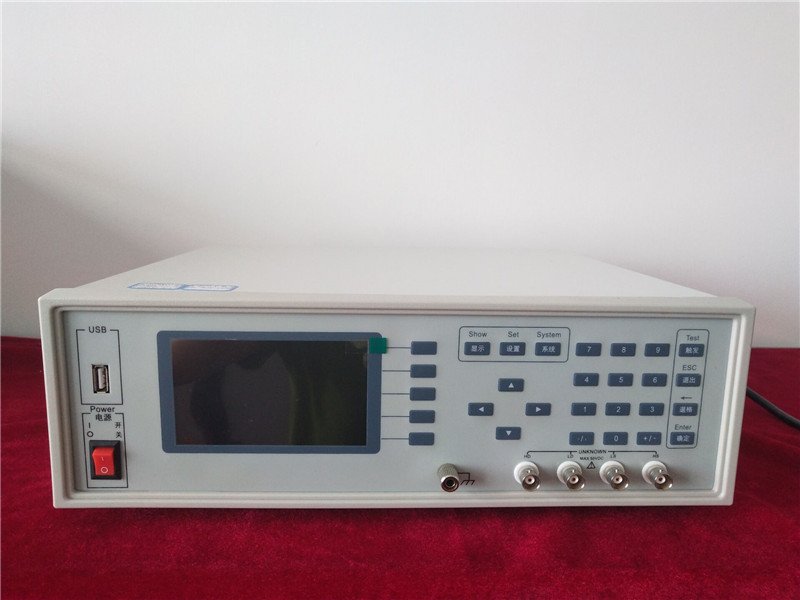

FT-310炭素電阻率測試儀

FT-310 Carbon resistivity tester

一.描述description：

四端測試法測量碳素材料，石墨等塊狀棒狀及粉末材料常溫下導電性能。恒流，自動電流檔， 4.3吋液晶顯示，顯示：電流、電壓、溫度、電阻率，電導率，電阻等數據，選配：PC軟件獲得測試數據之圖譜和報表。根據產品形狀不同選購測試治具.

The four terminal test method measures the high conductivity performance of carbon materials, graphite and other block-like rods and powder materials Under the normal temperature.High precision constant current. constant voltage source. Automatic current gear. 4.3 inch LCD  to display: current. voltage. temperature. resistivity. Conductivity and resistance datas. Optional to buy :PC software receives the test data chart  and report. choose to buy test jigs according to the shape of the product.

二.適用范圍Scope of application：

適用于碳素廠、焦化廠、石化廠、粉末冶金廠、高等院校、科研部門對材料之研究.

Suitable for carbon plant. coking plant. petrochemical plant. powder metallurgy factory. colleges and universities. scientific research department of new material research.

三.參照標準standard：

鋁用炭素材料檢測方法 第2部分 陰極炭塊和預焙陽極室溫電阻率的測定 GB/T6717、GB/T 24525-2009、YS/T63.2炭素材料電阻率測定方法.；ISO 11713-2000、YS/T63.2-2005和YS/T 64-1993標準方法測試陰極炭塊、預焙陽極、陽極糊陰極糊和炭素制品常溫下的電阻率。

aluminum carbon material detection method  part 2   The resistivity measureming of  Cathode carbon blocks and pre-baked anode under room temperature.GB/T6717. GB/T 24525-2009. YS/T63.2 carbon material resistivity method. At the same time meet the ISO 11713-2000. YS/T63.2-2005 and YS/T 64-1993 standard test method to test the  resistivity  of cathode carbon block. pre-baked anode and the anode paste cathode paste and carbon product under room temperature.

炭素材料制品的電阻率值是評價炭制品電極質量，也是在炭制品加工中控制監督工藝過程的重要參數。

The resistivity value of the  carbon materials products is  one of the important physical indexes  to evaluate the quality of electrode to  Determine thep roducts's grade .   It is also an important parameter to control the process of monitoring process in carbon processing.

測量電阻靈敏度達0.01μΩ. ，測試電流能達到10A

Measurement resistance sensitivity of 0.01μΩ. test current can achieve 10A

四.參數資料/ index

1.電壓/ voltage：量程/ range： 2mV.20mV. 200mV.2V

分辨率/resolution： 0.1uV，1uV，10uV，100uV

量程誤差：2mV 檔: 0.1%讀數+ 6個字 / range: 2mV. accuracy: 0.1%

20mV. 200mV. 2V檔： 0.1%讀數+ 2字 /range:20mV. 200mV. 2V. accuracy： 0.1%

2 直流恒流源/ DC constant current source： 輸出/ output： 100uA.1mA.10mA.100mA.1A.10A.

誤差Range： 100uA.1mA.10mA.100mA：accuracy 0.1%；

Range:1A，10A  accuracy： 0.15%

3.測量范圍：炭素長度：1.6m—2m;炭素直徑：100mm—600mm

電阻率：2×10-8—20kΩ·cm;電阻：0.01μΩ—20kΩ；

Measuring range: carbon materials length 1.6m—2m. carbon materials diameter 100mm—600mm.

resistivity：2×10-8—20kΩ·cm; resistance：0.01μΩ—20kΩ；

4.電阻分辯率/ resolution：0.01μΩ

5.顯示：4.3寸液晶屏、直讀電阻值、電阻率、電導率、溫度、電流、電壓等數據

Display: 4.3 inch LCD display. direct reading resistance. resistivity. conductivity. temperature. current. voltage and other data.

6.電源交流/ AC power   220±10% 50HZ/ 60HZ

配套方案：解決各材料狀態 --固態、液態、氣態、顆粒狀 電阻、電阻率、電導率測量
