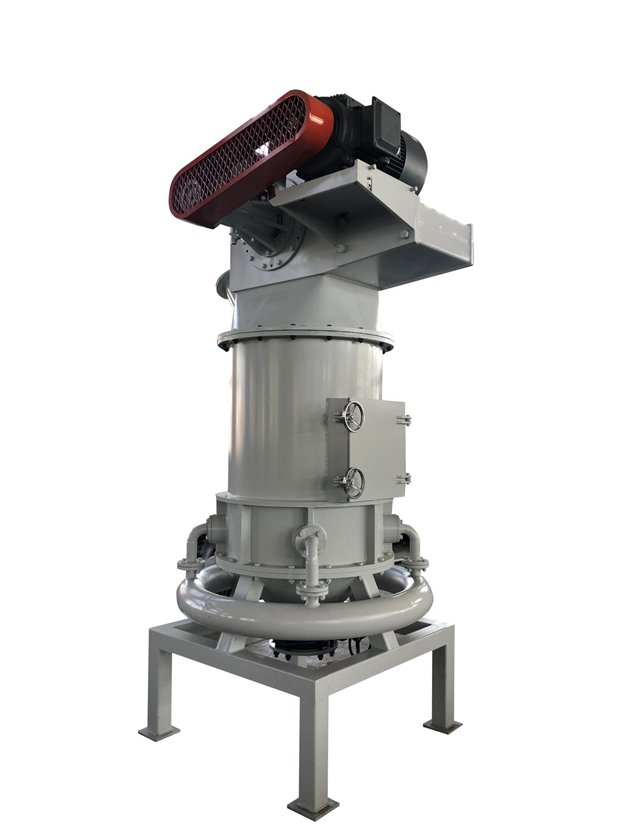

RFQM系列氣流磨

RFQM SERIES FLUIDIZED-BED JET MILL

RFQM系列氣流磨，是營口瑞豐粉體設備有限公司 ，根據多年豐富的經驗，空氣動力學、流體力學等資料，并結合實際生產中的各種問題，而進行自主研發優化改進的機型，具有實用性，較高的產量，并廣泛的應用于滑石、方解石等非金屬礦粉的精細加工，成品粉細度在1~30μm之間。

RFQM series air mill RFQM SERIES FLUIDIZED-BED JET MILL RFQM series air mill is Yingkou Ruifeng Powder equipment Co., Ltd. According to years of rich experience, aerodynamics, hydrodynamics and other data, and combined with the actual production of various problems, The improved model is practical, and widely used in fine processing of talc, calcite and other non-metallic mineral powder. The fineness of the finished powder is between 1 μ m and 30 μ m.

工作原理

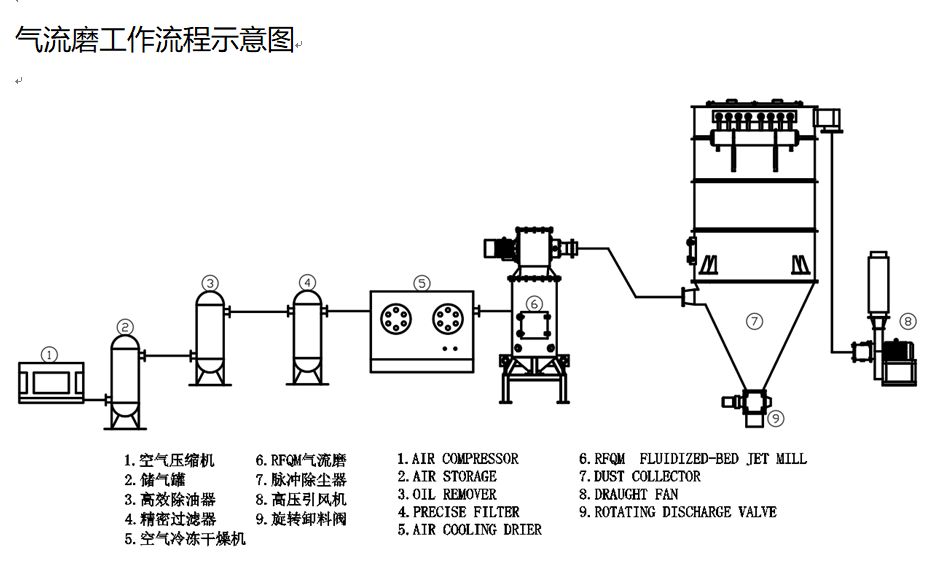

流化床氣流粉碎機（下文稱氣流磨）是一種利用高速氣流來實現干式物料粉碎的設備。它由磨體、噴嘴、分級機等部分組成，物料通過進料口進入磨體內部粉碎區，壓縮空氣通過超音速噴嘴向磨體內高速噴射，粗顆粒在超音速的噴射氣流中加速，并在噴嘴的交匯處對撞粉碎。被粉碎物料隨上升氣流進入分級區，在分級機的作用下，大于分級粒徑以上的粗顆粒物料返回磨體內部繼續沖擊粉碎，符合分級粒徑的細顆粒成品，則通過分級輪經過管路進入除塵器收集，微粉收集系統由粉塵收集器構成。超細粉通過密封管道進入收塵器后，由排料系統排出包裝即是成品。粉塵進入粉塵收集器，通過布袋過濾（德國必達福濾袋）后的氣體，在引風機的作用下抽出，尾氣排入大氣中。其排放的粉塵量低于國家的環保部門規定的粉塵排放標準。

Working principle

Fluidized bed airflow Grinder (hereafter referred to as Air Mill) is a kind of equipment which uses high speed air flow to realize dry material crushing. It consists of grinding bodies, nozzles, classifiers, etc. The material enters the grinding area through the inlet of the material, the compressed air is injected into the grinding body at high speed through the supersonic nozzle, and the coarse particles are speeded up in the supersonic jet flow. And smashing at the junction of the nozzle. When the comminuted material enters the classification area with the updraft, under the action of the classifier, the coarse particle material larger than the classifying diameter returns to the grinding body and continues to impact and comminute. The dust collection system consists of dust collector. After the super-fine powder enters the dust collector through the sealing pipe, the packing is finished product by the discharge system. The dust enters the dust collector, filters the gas after the cloth bag (the German Bedafur filter bag), pulls out under the action of the induced fan, the tail gas is discharged into the atmosphere. The amount of dust emitted is lower than the dust emission standard set by the national environmental protection department.

性能優勢

1.    分級機采用新的技術，特殊設計的分級機，比原有的分級機阻力低30%以上，相應降低風機能耗20-30%，

粒度分布集中，避免了機內粉體的過粉磨，與老型氣流磨相比節能20~30%，產量高出30~40%。

2.    采用獨立設計的分級機主軸結構，全新的結構設計擁有更高的強度，更高的轉速，更長的使用壽命，更加方便的潤滑及保養，采用Honeywell或者SIEMENS高能效電機驅動，各個方面都超過采用電動機直聯的方式。

3.    系統操作采用觸摸屏界面來進行操作，PLC程序自動控制，分級機，主風機，給料機全部采用日本安川變頻器驅動控制，給料系統能夠根據系統壓差，電流等數據進行更加快速、準確的給料。脈沖收塵器的清灰控制，主風機的轉速控制全部根據系統的壓力，壓差進行全自動的控制，來確保整個系統穩定、高效的運行。

4.    磨損小。由于主要粉碎作用是物料之間的相互沖擊碰撞，高速的物料顆粒與磨體內壁很少碰撞，可適用粉碎莫氏硬度九級以上的物料。

5.    對易燃、易爆物料可用惰性氣體做工質粉碎。

6.    無污染。因?yàn)槲锪鲜窃跉饬鞯膸?dòng)下自身碰撞粉碎，不帶入介質，這樣在物料的粉碎過程中不會構成污染。

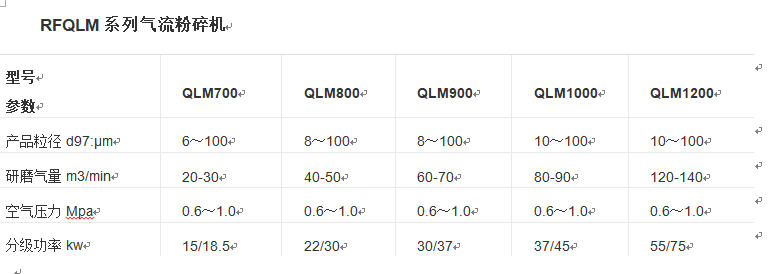

7.    產量:50～5000 kg/h；細度：d97=3～45μm；

Performance advantage

1. The classifier adopts new technology. The specially designed classifier is more than 30% lower than the original classifier, which reduces the energy consumption of the fan 20-30, and concentrates the particle size distribution, thus avoiding the grinding of the powder in the machine. Compared with the old type of air mill, energy saving 20, 30, the output is higher than 30, 40.

2. The new structure has higher strength, higher speed, longer service life, more convenient lubrication and maintenance, and is driven by Honeywell or SIEMENS high energy efficiency motor. All aspects go beyond the direct connection of the motor.

3. The system uses touch screen interface to operate, PLC program automatic control, classifier, main fan, feed machine are all controlled by Igawa inverter, feed system can be more quickly based on system pressure difference, current and other data. Accurate feed. In order to ensure the stable and efficient operation of the whole system, the ash cleaning control of the pulse dust collector and the speed control of the main fan are carried out automatically according to the pressure and pressure difference of the system.

 4. Wear is small. Because the main comminution action is the impact and collision between the materials, the high speed material particles rarely collide with the grinding body wall, so it can be used to comminute the materials with Mohlich hardness above nine grades.

5. Flammable and explosive materials can be comminuted by inert gas.

6. No pollution. Because the material is driven by the airflow, it does not bring into the medium, so the material will not be polluted in the process of crushing.

7. Yield: 50kW 5000 kg/h; fineness: d97m 3N 45 μ m;

適用范圍

該機廣泛的應用于滑石、水鎂石、重晶石、氫氧化鎂，磷酸鐵鋰等非金屬礦、電子材料、化工、新材料、磨料、耐火材料、稀土、 陶瓷、金屬粉末、墨粉、農藥、醫藥。

The machine is widely used in talc, brucite, barite, magnesium hydroxide, lithium iron phosphate and other non-metallic minerals, electronic materials, chemical, new materials, abrasive, refractory, rare earth, ceramics, metal powder, toner, pesticide, etc. medicine
