PM DD直驅式擺輥研磨機
Gearless pendulum roller mill

直驅式擺輥研磨機

· patented Direct Drive system of the mill with multipole synchrone motor

· 擁有**技術的多極同步電機直驅系統

· simplified mill design, eliminating e.g. gearbox, couplings and oil lubrication

· 簡化研磨機設計，取消了減速機、聯軸器和油潤滑系統

· variable grinding speed for optimized process conditions

· 可調速研磨，便于進行生產工藝調整優化

Maintenance

檢修維護

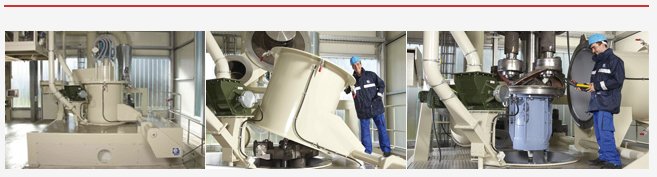

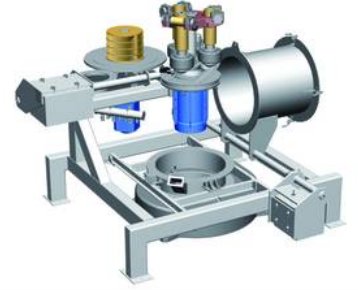

· drive and mill rotor with pendulums, are completely removable in one step for efficient external maintenance

· 驅動裝置和帶有擺輥的研磨機轉子，可輕松整體拆卸移出機殼，便于檢修維護

· highest process utilization due to lowest downtime

· 停機維護保養時間短，設備高效率連續運轉

原料通過進料裝置輸送進入研磨機，并掉落到研磨機下磨腔的底部。位于每個磨輥前的鏟刀在旋轉時從底部鏟起物料送至磨輥和磨環之間的位置，即物料研磨區。空氣流將磨碎的物料從研磨機下磨腔帶起進入研磨機頂部的靜態或動態分級機。通過調節分級機可以控制物料產品所需粒徑。被分離出來的粗顆粒物料落回到研磨機重新進行研磨。細粉則通過分級機被抽吸進入集塵器中。
