5L
直接聯系
青島亙易隆機械設備有限公司
面議
亙易隆
5L
6066
--
混煉造粒完美組合，中間無需搬料
型 號 Model | M-H-5L-DCSS-H | ||
密煉腔容積 Mixing Cylinder Cubage( L) | 5L | ||
擠出螺桿直徑 Diameter of Extrusion Screws( φ)(mm) | Φ45 | ||
混煉電機功率 Mixing Motor Power ( KW) | 7.5KW | ||
混煉變頻調速功率 Mixing Inverter Control Power ( KW) | 7.5KW | ||
擠出電機功率 Extrusion Motor Power ( KW) | 2.2KW | ||
擠出變頻調速功率 Extrusion Inverter Control Power ( KW) | 2.2KW | ||
切粒電機功率 Dicing Motor Power ( KW) | 0.75KW | ||
切粒變頻調速功率 Dicing Inverter Control Power ( KW) | 0.75KW | ||
加熱功率 Heating Power ( KW) | 6KW | ||
溫控區數 Temperature Control Interval No. | 四區 | ||
電器控制 Electric Control | 智能溫控表 Intelligent Temperature-controlled Table + PLC編程+觸摸屏控制 Touch Screen Control | ||
**切粒轉速 Max Rotating Speed of Dicing | 180r/min | ||
出料小孔徑 Small bore Discharging | Φ3.5 | ||
切刀吹氣冷卻 Slicer Cooling | 電磁氣閥自動控制 Automatically Control by Solenoid Valve | ||
全機重量 Total Weight | 約1.4噸 about 1.4 Ton | ||
安裝尺寸（米） Size of Installation( M) (長X寬X高) ( L x W x H) | 2.1×1.2 ×2.4 | ||

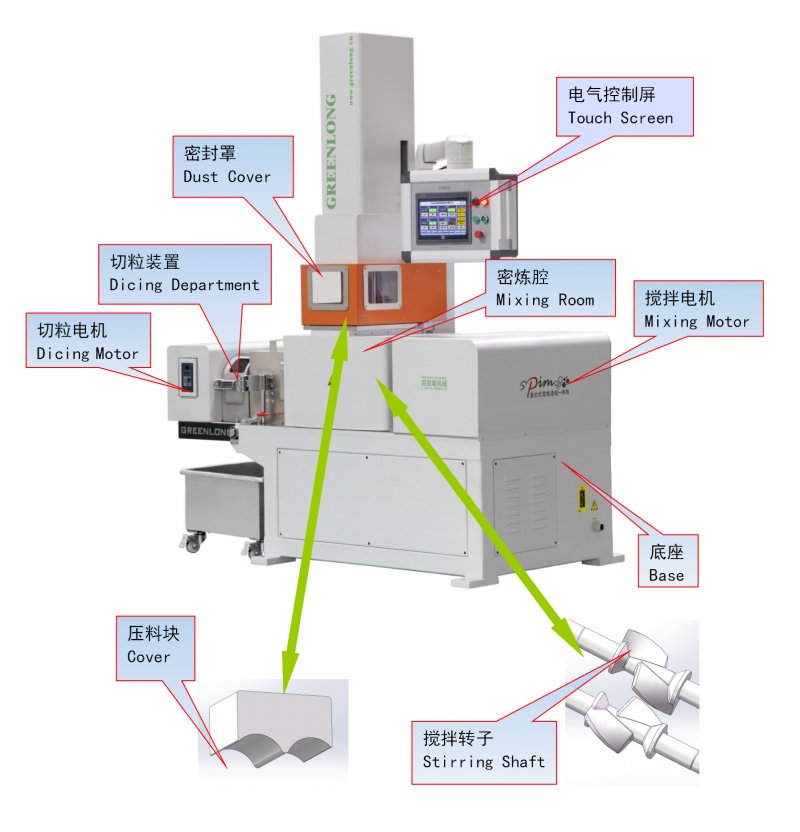

主要零配件明細
Main Part List
序號NO: | 名稱Name | 規格型號Model | 單位Unit | 數量Qua | 制造商Maker |
1 | 密煉腔Mixing Room | 5L | 件Pics | 1 | 亙易隆GREENLONG |
2 | 攪拌轉子Mixing Shaft | 5L | 套Set | 1 | 亙易隆GREENLONG |
3 | 擠出螺桿Extrusion Screw | Φ45 | 件Pics | 1 | 亙易隆GREENLONG |
4 | 模頭法蘭Extrusion Nozzle | / | 件Pics | 1 | 亙易隆GREENLONG |
5 | 混煉電機Mixing Motor | 7.5KW | 臺Set | 1 | 瑞德森/國茂REDSUN/GuoMao |
6 | 擠出電機Extrusion Motor | 2.2KW | 臺Set | 1 | 瑞德森/國茂REDSUN/GuoMao |
7 | 切粒電機Dicing Motor | 0.75KW | 臺Set | 1 | 瑞德森/國茂REDSUN/GuoMao |
8 | 密封罩Dust Cover | / | 件Pics | 1 | 亙易隆GREENLONG |
9 | 壓料塊Cover | / | 件Pics | 1 | 亙易隆GREENLONG |
10 | 料斗Feeder | / | 件Pics | 1 | 亙易隆GREENLONG |
本機特點：Special good points
◆ 混煉造粒**組合，中間無需搬料
This machine integrates mixing and granulation into the whole, and no need to transfer the resin.
◆ 粒料長短可控、光滑度可控
we can adjust the resin's length and Smoothness.
◆ 智能溫控，自動化程度高
Intelligent Temperature-controlled, High degree of automation
◆ 工作效率更高，性能更穩定
Higher efficiency and more stable performance
◆ 手動、自動可自由轉換
Manual, automatic, freely convertible
◆ 伺服控制，易清理
Servo control, easy to clean
◆ 帶粉塵回收和廢氣排放裝置
Dust recovery and exhaust gas emission device
◆ 螺桿和料筒耐磨和抗腐蝕
The screw and barrel are wear resistant and resistant to corrosion
◆ 大推力螺桿設計，輸送速度快
Large thrust screw design, fast delivery speed
◆ 體積小，占地面積少
Small size, small footprint
◆ 功耗小，耗電少
Low power consumption and less power consumption
