應用概述 General of applications

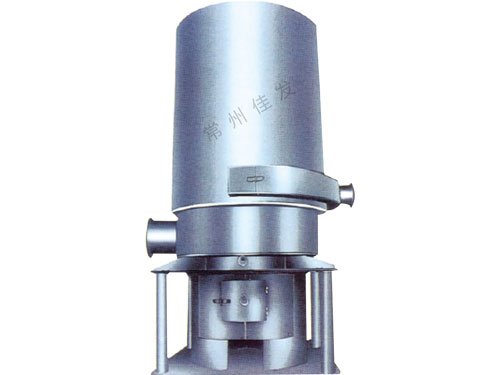

★該爐為通用性熱風加熱裝置，與各種物料的干燥設備配套使用。
★該爐集燃燒與換熱為一體，以爐體高溫部位進行換熱的**間接加熱技術。采取了耐高溫措施，從而使其壽命比管式熱風爐大大提高，輸出熱風溫度可達300℃以上，同時采用了煙氣逆向刷新換熱片和負壓吸式排煙方式，換熱部位不積灰、無須清理，熱性能穩定。可使用各種煤或木柴做燃料，并配有二次進風裝置，燃燒完全。各項技術指標均達國內**。
★The furnace is universal hot air heating device and can be equipped with all kinds of drying equipment.
★The furnace integrates combustions and heat exchange in one body and adopts the newest indirect heating technique with high temperature of furnace body to carry out heat exchange and adopts measures of high temperature resistant too. Compared with pipe type hot air furnace, its life is raised greatly. The temperature of hot air to be transmitted may reach over 300℃.Meanwhile it adopts heat exchange sheet of conversed smoke and air and smoke exhausted way of negative pressure. So the part of heat exchange does not accumulate dust and not necessary to clean and the thermal property is constant. It can use different coal or as fuel. Because of equipped with secondary air in device, the combustion is fully.All technical indexes reach to domestic advanced level.
項目ltem 規格Specification | 輸出熱量(104kcal/h) Heat capacity of output heat | 輸出風量(m3/h) Air volume of output | 熱風溫度(℃) T of hot air | 耗煤量(kg/h) Consumption of coal | 煙氣引風機型號 Model of exhaust smoke fan |
JRF4-2.5 | 2.5-3 | 560-1500 | 60-200 | 10-12 | 炊事用鼓風機80-100W Blast fan for cooking 800-100W |
JRF4-4 | 4-5 | 930-3500 | 60-200 | 14-17 | 炊事用鼓風機200-300W Blast fan for cooking 800-100W |
JRF5-8 | 6-8 | 1480-5600 | 60-200 | 18-24 | Y5-47 2.8c 1.1Kw |
JRF5-15 | 10-15 | 2160-12000 | 60-300 | 30-45 | Y5-47 4c 2.2Kw |
JRF5-30 | 25-30 | 4330-25000 | 60-300 | 70-85 | Y5-47 4c 3Kw |
JRF5-60 | 55-60 | 8660-45000 | 60-300 | 150-175 | Y5-47 4c 5.5Kw |
JRF5-80 | 75-90 | 12500-83000 | 60-300 | 180-220 | GY2-1 11w |
JRF5-100 | 80-100 | 14400-84000 | 60-300 | 220-290 | GY2-1 11kw |
JRF5-160 | 120-160 | 23000-134000 | 60-300 | 410-460 | Y9-26 9D 18.5Kw |
所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。
All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
