XC-XBD
直接聯系
蘇州協昌環保科技股份有限公司
蘇州
面議
協昌
XC-XBD
4385
一、產品簡介：

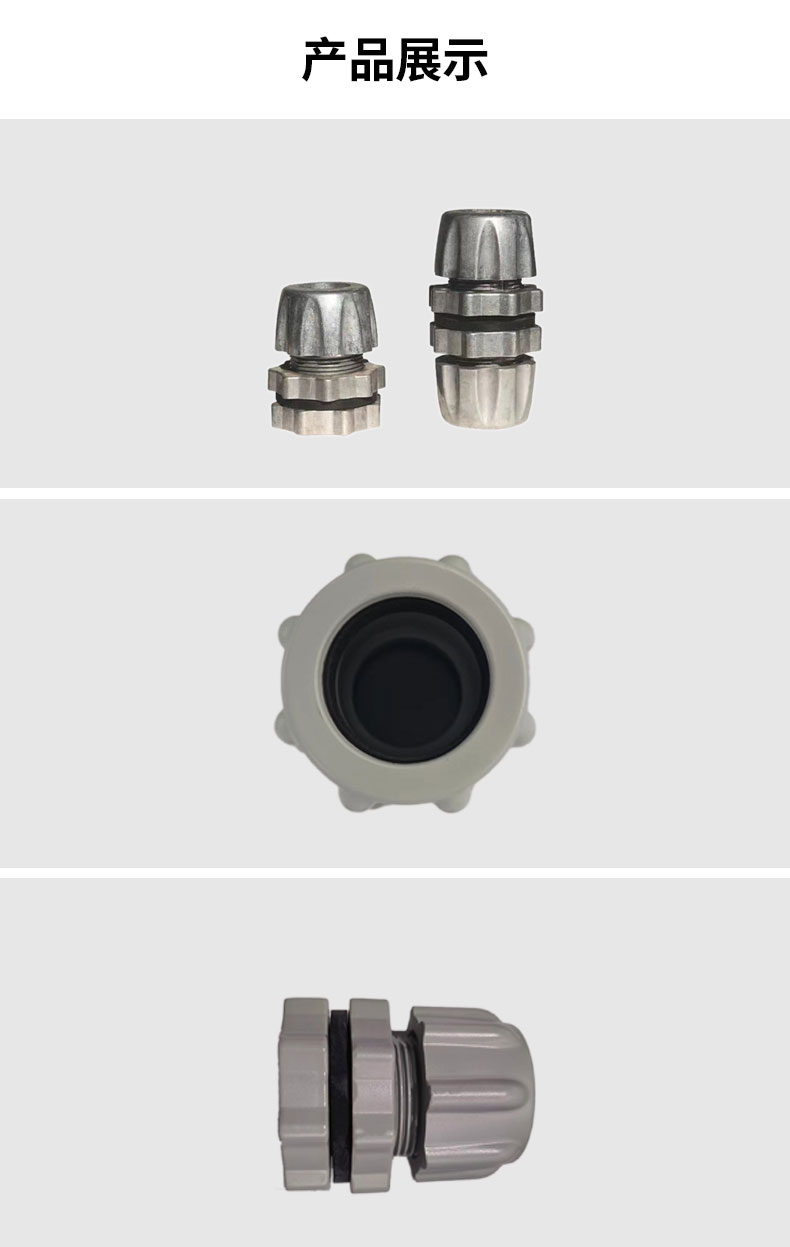

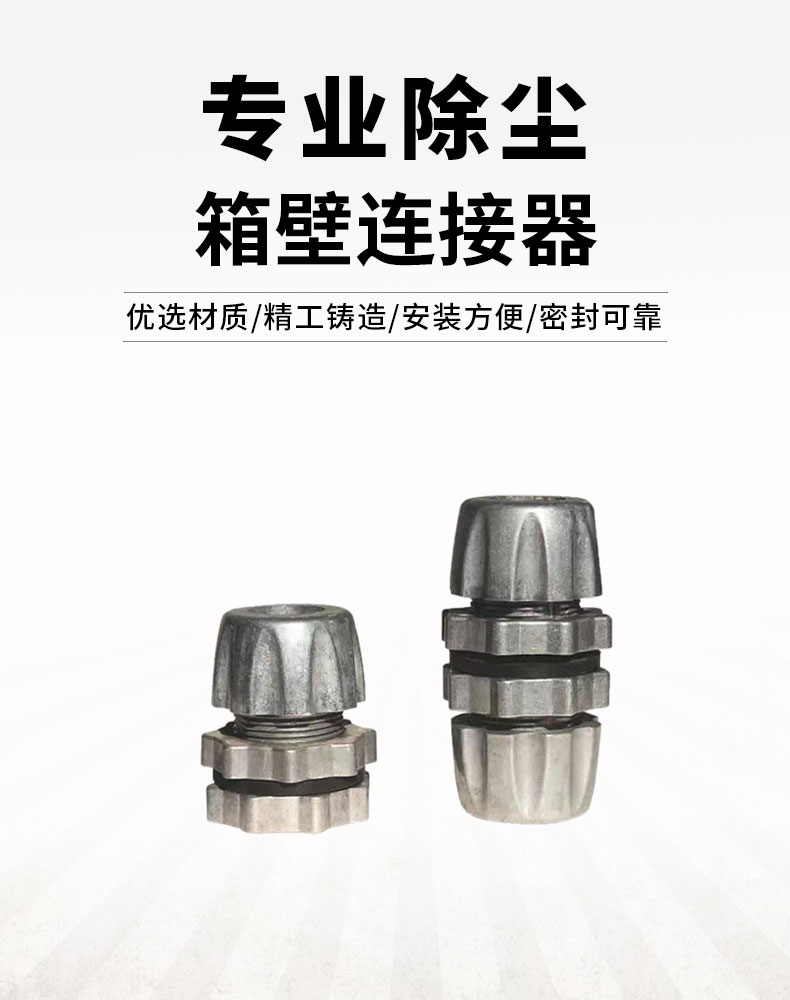

“協昌”研制的除塵器的箱壁連接器產品，避免了壓力氣管以焊接或螺栓連接通過除塵器箱壁，使操作簡單，密封可靠，安裝、維修方便。
二、結構特點：
箱壁連接器分單頭螺母壓緊和雙頭螺母壓緊兩種結構形式。單頭螺母箱壁連接器，噴吹管可穿過箱壁連接器與脈沖閥排氣口連接，單螺母壓緊密封圈連接密封。雙頭螺母箱壁連接器，噴吹管插入箱壁連接器內側一端，通氣管插入箱壁連接器外側一端，兩端由螺母壓緊密封圈連接密封。箱壁連接器與直角電磁脈沖閥和專用活接頭配套，使用可靠，安裝維修方便。
三、型號規格

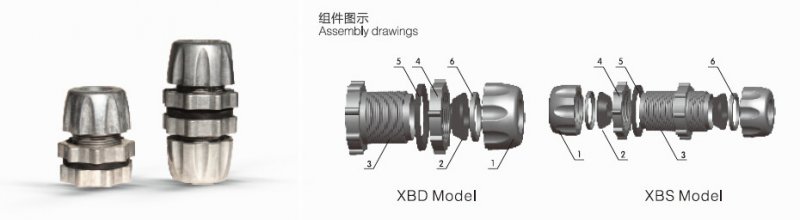

| 序號 | 組件名稱 | 電磁脈沖閥型號 | 組件型號 | |
| XBD型箱壁連接器 | XBS型箱壁連接器 | |||
| 1 | 閥座壓緊螺母 | DCF-ZM-20 | DCF-ZM-20-2 | DCF-ZM-20-2 |
| DCF-ZM-25 | DCF-ZM-25-2 | DCF-ZM-25-2 | ||
| DCF-ZM-40S | DCF-ZM-40-2 | DCF-ZM-40-2 | ||
| 2 | 閥座密封圈 | DCF-ZM-20 | DCF-ZM-20-3 | DCF-ZM-20-3 |
| DCF-ZM-25 | DCF-ZM-25-3 | DCF-ZM-25-3 | ||
| DCF-ZM-40S | DCF-ZM-40-3 | DCF-ZM-40-3 | ||
| 3 | 箱壁連接器本體 | DCF-ZM-20 | XC-XBD-20.1 | XC-XBS-20.1 |
| DCF-ZM-25 | XC-XBD-25.1 | XC-XBS-25.1 | ||
| DCF-ZM-40S | XC-XBD-40.1 | XC-XBS-40.1 | ||
| 4 | 箱壁壓緊螺母 | DCF-ZM-20 | XC-XBD-20.2 | XC-XBD-20.2 |
| DCF-ZM-25 | XC-XBD-25.2 | XC-XBD-25.2 | ||
| DCF-ZM-40S | XC-XBD-40.2 | XC-XBD-40.2 | ||
| 5 | 箱壁密封墊 | DCF-ZM-20 | XC-XBD-20.3 | XC-XBD-20.3 |
| DCF-ZM-25 | XC-XBD-25.3 | XC-XBD-25.3 | ||
| DCF-ZM-40S | XC-XBD-40.3 | XC-XBD-40.3 | ||
| 6 | 碗型密封圈（一） | DCF-ZM-20 | DCF-ZM-20.4 | DCF-ZM-20.4 |
| DCF-ZM-25 | DCF-ZM-25.4 | DCF-ZM-25.4 | ||
| DCF-ZM-40S | DCF-ZM-40.4 | DCF-ZM-40.4 | ||
