抗靜電棒 “ABSL-RC”

工作距離 :20 – 200 mm

工作電壓 :7000 VAC

電源 :  12-24V直流輸入

工作溫度 :0°C – 70° C

長度 :100毫米至6000毫米

 1：高效率除靜電器（意大利進口設備，超高壓放電，長效駐電）。

2：抗靜電棒（無沖擊）可用于許多領域，例如紡織，造紙，塑料加工，印刷，加工，包裝等。

電阻率測試報告
儀器名稱	智能粉末電阻率測試儀		樣品規格	C04Q2W3004-YC
型號	FT-7200A		試樣質量	0.300000g
測試員			日   期	20230928
測試地點			報告編號
測試結果	電阻率：	電阻率：0.0031796Ω.cm
測試員		審核		核準

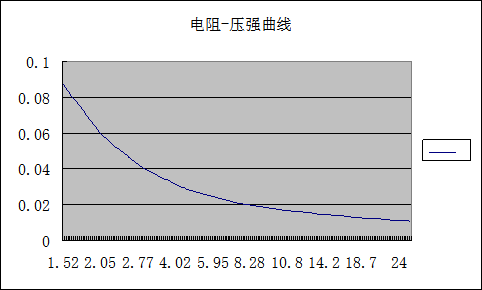

電壓V	壓強Mpa	電阻Ω	電導率S/mm	電阻率Ω.mm	高度mm	壓實密度（g/cm3）
0.00856	1.52	0.085599	10.771602	0.09	7.19	0.531254
0.008396	1.52	0.083957	10.913945	0.091626	7.14	0.5
0.008254	1.52	0.082541	11.025662	0.090698	7.10	0.5
0.008121	1.52	0.08121	11.142036	0.08975	7.06	0.5
0.007999	1.52	0.079989	11.251556	0.088877	7.03	0.5
0.00789	1.52	0.078895	11.352658	0.088085	6.99	0.5
0.007761	1.52	0.07761	11.488047	0.087047	6.94	0.6
0.007623	1.52	0.076235	11.665304	0.085724	6.92	0.6
0.007491	1.52	0.074915	11.770466	0.084958	6.88	0.6
0.007355	1.52	0.073554	11.917247	0.083912	6.84	0.6
0.007209	1.52	0.072092	12.088171	0.082725	6.79	0.6
0.007071	1.52	0.070707	12.236802	0.081721	6.74	0.6
0.006934	1.52	0.069342	12.396843	0.080666	6.67	0.6
0.006793	1.56	0.067929	12.611581	0.079292	6.65	0.6
0.006649	1.6	0.066486	12.749215	0.078436	6.60	0.6
0.006509	1.64	0.065092	12.922351	0.077385	6.55	0.6
0.00637	2.05	0.063703	13.106229	0.0763	6.50	0.6
0.006239	2.05	0.062385	13.287094	0.075261	6.45	0.6
0.006122	2.05	0.061221	13.539696	0.073857	6.43	0.6
0.006006	2.05	0.060064	13.647815	0.073272	6.36	0.6
0.005903	2.05	0.059032	13.744099	0.072759	6.32	0.6
0.005796	2.05	0.057957	13.904319	0.07192	6.28	0.6
0.005695	2.05	0.056953	14.046581	0.071192	6.23	0.6
0.005597	2.05	0.055967	14.18953	0.070475	6.19	0.6
0.005498	2.09	0.054978	14.398268	0.069453	6.16	0.6
0.005401	2.13	0.054009	14.543572	0.068759	6.12	0.6
0.00531	2.17	0.053104	14.687998	0.068083	6.05	0.6
0.00523	2.17	0.052298	14.758666	0.067757	6.02	0.6
0.005153	2.29	0.05153	14.892055	0.06715	5.98	0.6
0.005085	2.29	0.050853	15.000105	0.066666	5.95	0.6
0.005016	2.29	0.050164	15.16567	0.065938	5.94	0.6
0.00494	2.33	0.049397	15.323604	0.065259	5.90	0.6
0.004858	2.41	0.048584	15.491003	0.064554	5.85	0.7
0.004773	2.45	0.047729	15.621656	0.064014	5.81	0.7
0.00469	2.45	0.046904	15.790454	0.063329	5.77	0.7
0.004606	2.65	0.046062	15.974007	0.062602	5.73	0.7
0.004521	2.65	0.045205	16.223232	0.06164	5.71	0.7
0.004432	2.65	0.044319	16.432639	0.060854	5.67	0.7
0.004346	2.69	0.043465	16.63257	0.060123	5.63	0.7
0.004261	2.77	0.042612	16.842673	0.059373	5.56	0.7
0.004181	2.85	0.041813	16.963672	0.05895	5.52	0.7
0.004109	2.89	0.041089	17.262511	0.057929	5.49	0.7
0.004038	2.97	0.040377	17.390216	0.057504	5.47	0.7
0.003977	3.09	0.039765	17.539336	0.057015	5.43	0.7
0.003919	3.13	0.039186	17.67812	0.056567	5.40	0.7
0.003865	3.21	0.03865	17.811342	0.056144	5.35	0.7
0.003812	3.33	0.038121	17.898213	0.055871	5.31	0.7
0.003763	3.37	0.037629	18.064432	0.055357	5.30	0.7
0.003713	3.41	0.037128	18.188201	0.054981	5.26	0.7
0.003663	3.45	0.036634	18.307943	0.054621	5.22	0.7
0.003612	3.49	0.036119	18.434981	0.054245	5.18	0.7
0.003558	3.53	0.035584	18.572792	0.053842	5.12	0.7
0.003509	3.77	0.035088	18.610226	0.053734	5.08	0.8
0.003461	3.77	0.034606	18.79565	0.053204	5.07	0.8
0.003413	3.77	0.034132	18.92631	0.052837	5.03	0.8
0.003362	3.86	0.033622	19.084188	0.052399	5.00	0.8
0.003313	3.86	0.033133	19.246907	0.051956	4.97	0.8
0.003261	3.94	0.032608	19.431625	0.051463	4.94	0.8
0.00321	3.98	0.032097	19.622002	0.050963	4.89	0.8
0.003164	4.02	0.031637	19.782315	0.05055	4.88	0.8
0.003113	4.1	0.031134	19.983374	0.050042	4.85	0.8
0.003065	4.26	0.030648	20.167145	0.049586	4.82	0.8
0.003017	4.34	0.030173	20.353997	0.04913	4.79	0.8
0.00297	4.46	0.029695	20.552534	0.048656	4.76	0.8
0.002924	4.62	0.029245	20.86942	0.047917	4.71	0.8
0.002879	4.66	0.028788	21.001344	0.047616	4.69	0.8
0.002838	4.74	0.028379	21.088415	0.047419	4.66	0.8
0.002801	4.86	0.028007	21.236788	0.047088	4.63	0.8
0.002768	4.98	0.027677	21.356159	0.046825	4.61	0.8
0.002735	5.06	0.02735	21.51426	0.046481	4.59	0.8
0.002705	5.14	0.027054	21.621996	0.046249	4.56	0.8
0.002676	5.38	0.026762	21.729305	0.046021	4.54	0.8
0.002651	5.38	0.026506	21.818912	0.045832	4.51	0.8
0.002623	5.5	0.026229	21.991362	0.045472	4.50	0.8
0.002595	5.66	0.025952	22.108682	0.045231	4.46	0.9
0.002568	5.66	0.025679	22.140401	0.045166	4.43	0.9
0.002539	5.75	0.025389	22.252288	0.044939	4.40	0.9
0.002512	5.79	0.025121	22.328007	0.044787	4.37	0.9
0.002483	5.91	0.024832	22.438278	0.044567	4.34	0.9
0.002455	5.95	0.024548	22.6096	0.044229	4.32	0.9
0.002425	6.03	0.024246	22.734093	0.043987	4.30	0.9
0.002395	6.11	0.023954	22.867963	0.043729	4.25	0.9
0.002368	6.23	0.023678	22.908195	0.043653	4.23	0.9
0.002338	6.35	0.023379	23.065018	0.043356	4.20	0.9
0.002309	6.35	0.023087	23.285164	0.042946	4.19	0.9
0.00228	6.47	0.022804	23.440229	0.042662	4.16	0.9
0.002253	6.67	0.022532	23.536445	0.042487	4.14	0.9
0.002225	6.75	0.022245	23.724905	0.04215	4.13	0.9
0.002198	6.87	0.021977	24.014851	0.041641	4.10	0.9
0.002171	6.99	0.021709	24.064493	0.041555	4.08	0.9
0.002145	7.11	0.021451	24.228915	0.041273	4.06	0.9
0.002123	7.31	0.021229	24.483041	0.040845	4.03	0.9
0.002099	7.47	0.020992	24.467885	0.04087	4.00	1.0
0.002081	7.68	0.020808	24.617384	0.040622	3.99	1.0
0.002061	7.68	0.020605	24.667239	0.04054	3.96	1.0
0.002044	7.72	0.02044	24.736066	0.040427	3.94	1.0
0.002026	8.08	0.020259	24.806017	0.040313	3.92	1.0
0.00201	8.08	0.020103	24.92858	0.040115	3.91	1.0
0.001995	8.2	0.019952	24.964052	0.040058	3.87	1.0
0.00198	8.28	0.019796	25.160777	0.039744	3.86	1.0
0.001964	8.36	0.019642	25.047214	0.039925	3.85	1.0
0.001949	8.8	0.019493	25.16692	0.039735	3.82	1.0
0.001933	8.8	0.019333	25.249783	0.039604	3.80	1.0
0.001916	8.8	0.019164	25.472061	0.039259	3.78	1.0
0.001901	8.84	0.019008	25.681787	0.038938	3.76	1.0
0.001883	8.84	0.018834	25.918419	0.038583	3.75	1.0
0.001868	8.96	0.01868	25.573289	0.039103	3.73	1.0
0.00185	9.08	0.018504	25.678424	0.038943	3.71	1.0
0.001835	9.61	0.018346	25.775455	0.038797	3.69	1.0
0.001818	9.61	0.018181	25.904253	0.038604	3.68	1.0
0.001803	9.61	0.018028	26.009899	0.038447	3.66	1.0
0.001785	9.61	0.017853	26.179313	0.038198	3.65	1.0
0.001769	9.73	0.017692	26.332074	0.037977	3.64	1.0
0.001753	9.93	0.017525	26.487681	0.037753	3.63	1.1
0.001737	10.09	0.01737	26.621871	0.037563	3.61	1.1
0.001721	10.21	0.017208	26.761008	0.037368	3.59	1.1
0.001705	10.45	0.017054	26.883744	0.037197	3.58	1.1
0.001691	10.53	0.016912	26.981377	0.037063	3.56	1.1
0.001679	10.61	0.016789	27.178049	0.036794	3.55	1.1
0.001667	10.81	0.01667	27.373487	0.036532	3.53	1.1
0.001656	10.93	0.01656	27.554206	0.036292	3.51	1.1
0.001645	11.13	0.016448	27.742945	0.036045	3.49	1.1
0.001636	11.25	0.016361	27.890035	0.035855	3.47	1.1
0.001626	11.25	0.016262	28.058834	0.035639	3.45	1.1
0.001616	11.5	0.016156	27.265861	0.036676	3.44	1.1
0.001606	11.58	0.016065	27.420399	0.036469	3.42	1.1
0.001596	11.78	0.015963	27.332561	0.036586	3.41	1.1
0.001587	11.9	0.01587	27.491711	0.036375	3.39	1.1
0.001578	11.98	0.015779	27.650279	0.036166	3.38	1.1
0.001569	12.14	0.015687	27.813085	0.035954	3.37	1.1
0.001559	12.22	0.015591	27.542746	0.036307	3.35	1.1
0.001549	12.42	0.015486	27.59816	0.036234	3.34	1.1
0.001529	12.7	0.015289	27.862837	0.03589	3.33	1.1
0.001509	12.9	0.015094	28.112551	0.035571	3.31	1.2
0.0015	13.26	0.014997	28.294786	0.035342	3.30	1.2
0.001478	13.43	0.014778	28.480129	0.035112	3.29	1.2
0.001469	13.43	0.014688	28.543456	0.035034	3.27	1.2
0.001459	13.43	0.014587	28.741083	0.034793	3.26	1.2
0.001451	13.99	0.014505	28.902653	0.034599	3.25	1.2
0.00144	14.23	0.014399	28.7529	0.034779	3.23	1.2
0.001432	14.39	0.014321	28.775902	0.034751	3.22	1.2
0.001424	14.51	0.014235	28.814624	0.034705	3.20	1.2
0.001418	14.71	0.014175	28.793219	0.03473	3.18	1.2
0.001411	14.95	0.01411	28.791229	0.034733	3.17	1.2
0.001402	15.03	0.014022	28.835978	0.034679	3.16	1.2
0.001396	15.24	0.01396	28.835063	0.03468	3.14	1.2
0.001389	15.36	0.013893	28.818361	0.0347	3.13	1.2
0.001384	15.4	0.013838	28.934013	0.034561	3.11	1.2
0.001372	15.68	0.01372	29.183192	0.034266	3.10	1.2
0.001365	15.92	0.013649	28.950683	0.034541	3.08	1.2
0.001353	16.16	0.013532	29.201599	0.034245	3.07	1.2
0.00134	16.24	0.013397	29.230621	0.034211	3.06	1.2
0.001321	16.76	0.013206	29.537473	0.033855	3.05	1.3
0.001306	17.13	0.013056	29.87536	0.033472	3.03	1.3
0.001292	17.41	0.012922	29.959315	0.033379	3.02	1.3
0.001278	17.77	0.012775	30.173376	0.033142	3.01	1.3
0.001272	18.01	0.012721	30.303306	0.033	2.99	1.3
0.001266	18.29	0.012658	30.171191	0.033144	2.98	1.3
0.00126	18.45	0.012601	30.196884	0.033116	2.97	1.3
0.001254	18.65	0.01254	30.232671	0.033077	2.96	1.3
0.001249	18.85	0.012491	30.217871	0.033093	2.95	1.3
0.001244	19.06	0.012439	30.221158	0.033089	2.93	1.3
0.001239	19.18	0.012395	30.195425	0.033118	2.92	1.3
0.001235	19.46	0.012349	30.173558	0.033142	2.91	1.3
0.001231	19.62	0.012309	30.137275	0.033182	2.89	1.3
0.001225	19.7	0.012248	30.14	0.033179	2.88	1.3
0.001221	19.9	0.01221	30.100355	0.033222	2.87	1.3
0.001211	20.38	0.012107	30.240899	0.033068	2.85	1.3
0.001205	20.42	0.012049	30.384608	0.032911	2.84	1.3
0.001197	20.66	0.011974	30.257918	0.033049	2.83	1.3
0.001185	20.95	0.011853	30.415845	0.032878	2.81	1.4
0.001162	21.71	0.011617	30.90063	0.032362	2.80	1.4
0.001152	22.19	0.011517	31.047705	0.032209	2.79	1.4
0.001144	22.47	0.011441	31.097718	0.032157	2.78	1.4
0.00114	22.71	0.011401	31.085635	0.032169	2.76	1.4
0.001135	22.75	0.011349	31.226385	0.032024	2.75	1.4
0.00113	23.24	0.011304	31.351795	0.031896	2.74	1.4
0.001126	23.52	0.011259	31.475839	0.03177	2.73	1.4
0.001118	23.8	0.011184	31.688289	0.031557	2.71	1.4
0.001114	23.96	0.011136	31.104296	0.03215	2.70	1.4
0.00111	24.2	0.011098	31.210889	0.03204	2.69	1.4
0.001105	24.44	0.011054	31.333523	0.031915	2.68	1.4
0.001102	24.56	0.011016	31.443278	0.031803	2.67	1.4
0.001098	24.89	0.010985	31.532412	0.031713	2.65	1.4
0.001094	25.05	0.010937	30.948829	0.032311	2.65	1.4
0.001076	24.89	0.010762	31.450299	0.031796	2.62	1.5
